Interlace/Progressive mode

Problem

Our incoming feed is Interlaced but NDI output is Progressive. Why?

Solution

Let me note: not all HW decoder (or drivers) supports Interlaced output and always generates Progressive.

So please check “Decoder” field and switch to “Software decoder”. SW decoder does not change mode.

Example (incoming Interlaced feed):

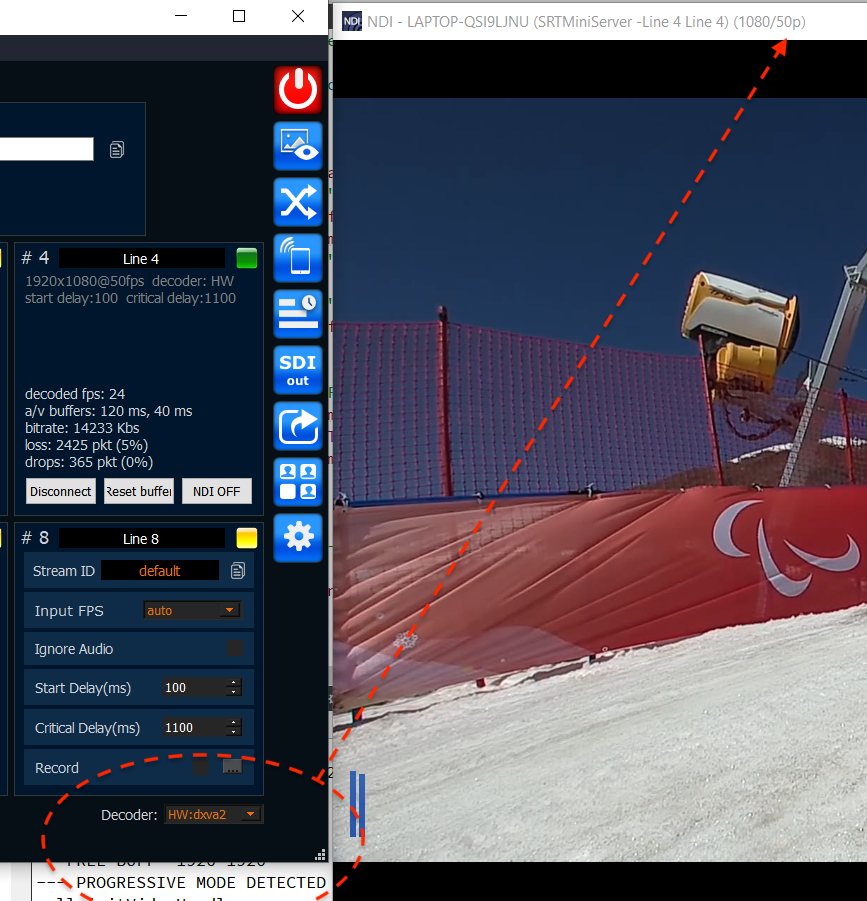

Screenshot

HW decoder auto switch to Progressive mode

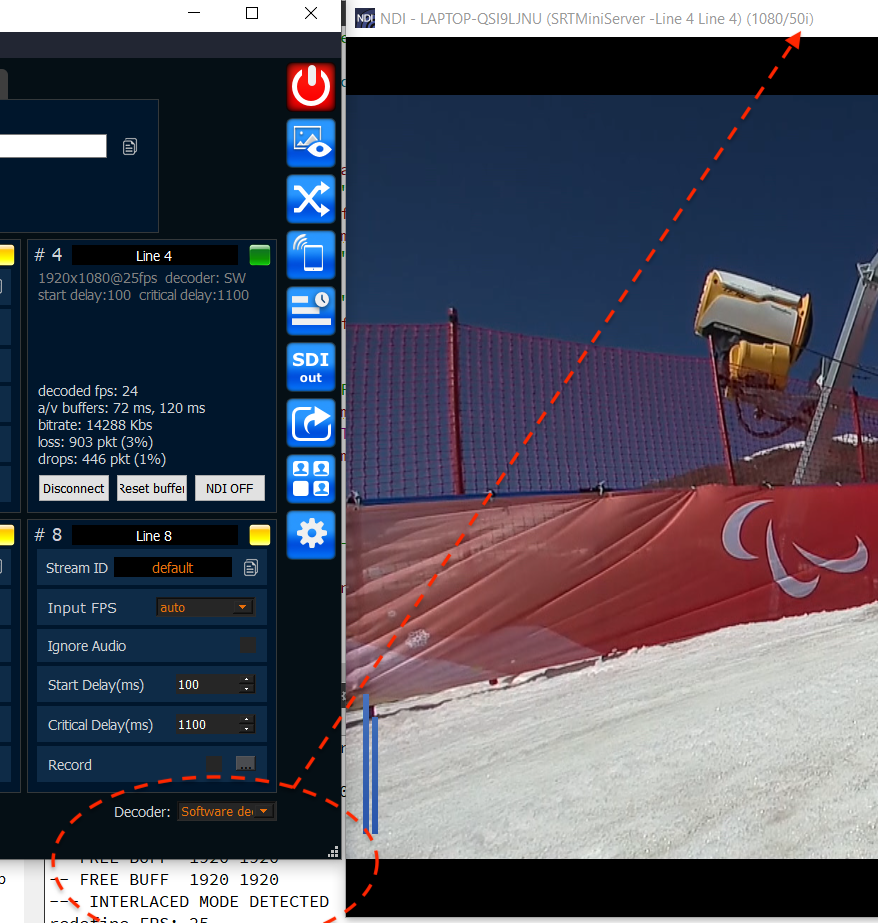

Screenshot

SW decoder uses original mode (Interlaced)
