VITC method

We introduce new feature: synchronization SRT feeds by timecode between PC & iPhones.It allows synchronize many feeds for next production steps.

For play with it you need:

  • SRTMiniServer 1.7.7

  • SRTStreamer 0.8

  • Stream To Studio 1.2

Underhood

SRTStreamer (Win) and Stream To Studio(iOS) usestandard way called “VITC” (Vertical Interval Timecode )

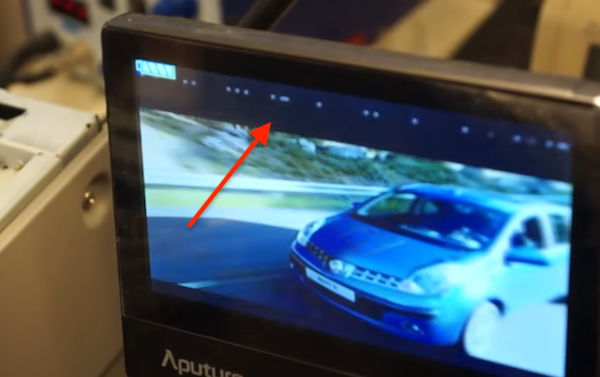

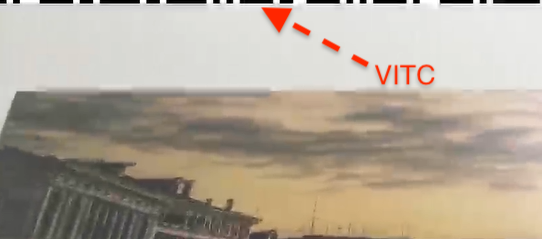

This approach adds black-white points at top of image:

Screenshot

Note: this standard was popular and supported in pro-tv systems

Screenshot

How it works

  • start streams from few SRTStreamer and Stream To Studio app (turn on Insert Timecode option)

  • run TimeCode Sync addon from SRTMiniServer

  • add lines to addon

  • press “Auto balance”

  • now you can use NDI source called “TimeCodeSync-*” in vMix, Tricaster etc

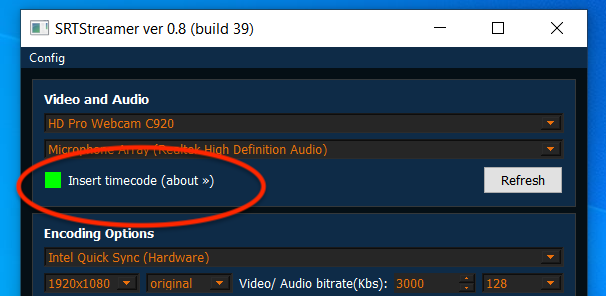

SRTStreamer: turn on Insert Timecode option

Screenshot

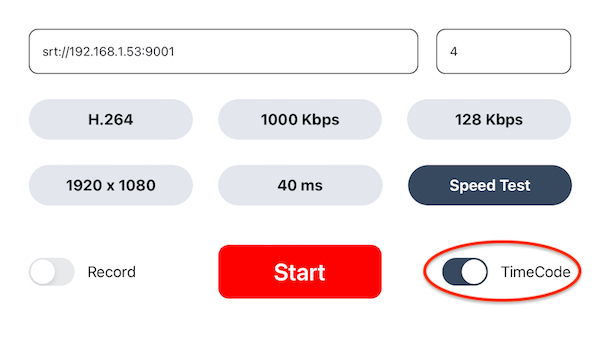

Stream to Studio: turn on Timecode option

Screenshot
