Dynamic Overlay

7.4.1. Dynamic Overlay

EXPERIMENTAL FEATURE

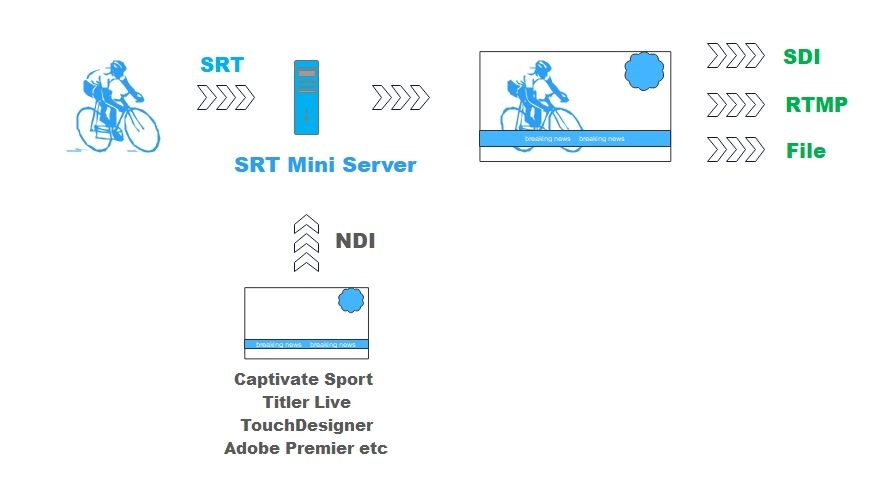

This feature allows you to overlay a dynamic graphics from any NDI source and send result to SDI, RTMP, HLS, File etc.

For example, titles from Captivate (Titler Live) or TouchDesigner or Adobe Premier etc.

Turn-on this function:

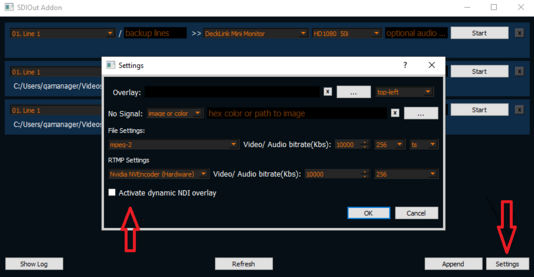

go to SDI Out Addon –> Settings –> Activate dynamic NDI overlay

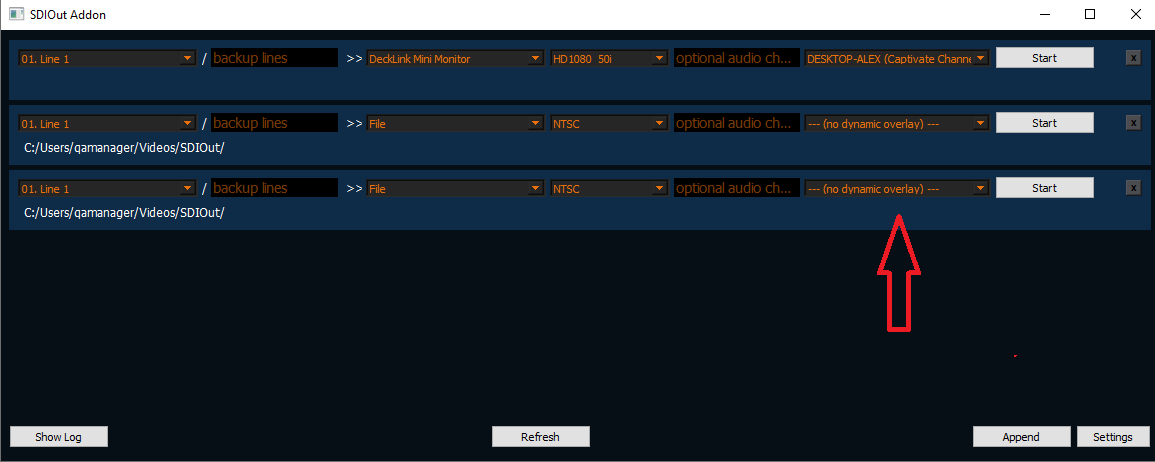

After that, each line will have a list for selecting the overlay source.

If the NDI-source you need is not in the list, press the Refresh button.

After that you can press Start.

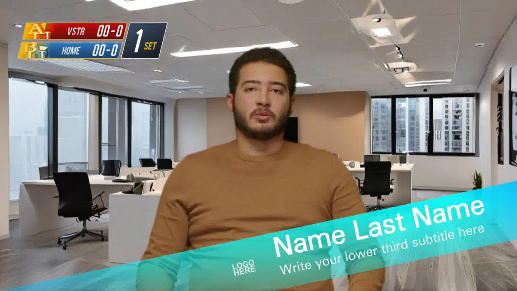

example of result
